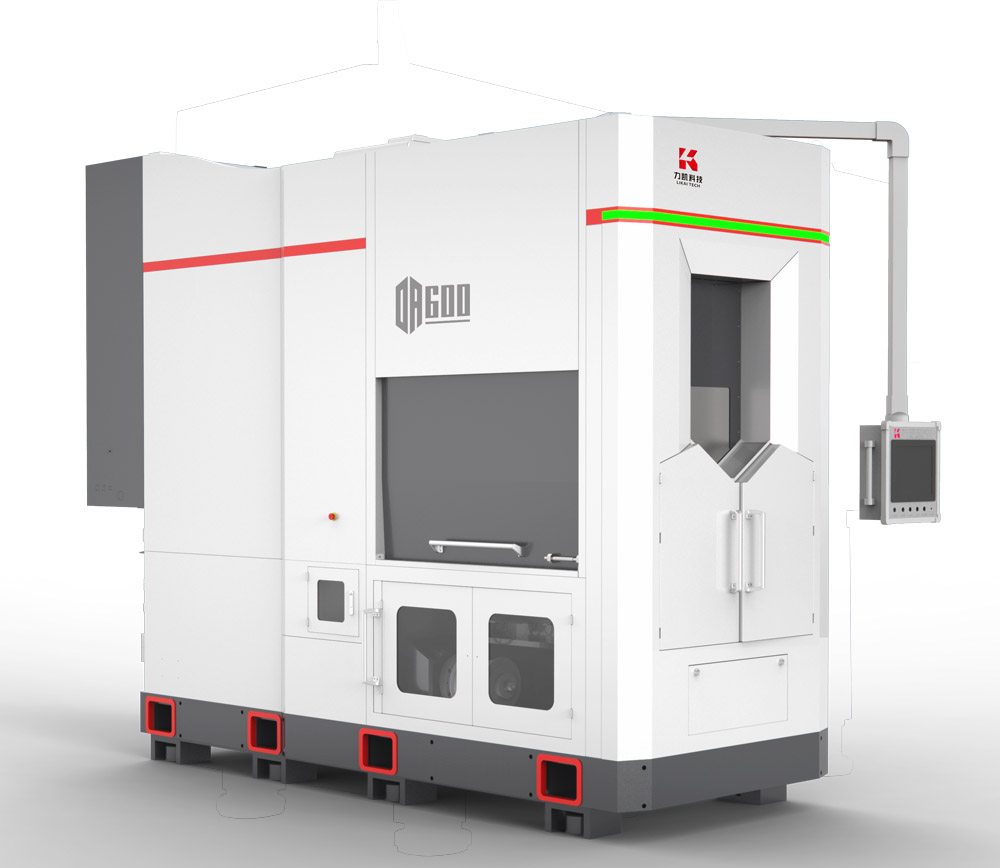

DA600 Multi-wire Saw
Applicable Material:Sapphire, Silicon Carbide, Optical Glass, Quartz Crystal, Special Ceramics Alumina, Silicon Nitride, and other super hard and brittle materials.
Max Processing Size: 4”~8”×600mm
Cut Shape: Straight shape
Max Wire Speed: 2400m/min
Remark: The equipment appearance has been updated.


1.Product Introduction

The equipment is mainly used for slicing super hard and brittle materials such as Sapphire, Silicon Carbide, Optical Glass, Quartz Crystal, Special Ceramics Alumina and Silicon Nitride.

The machine has large loading capacity, high wire speed, fine linearity and three main rollers with three motors synchronous drive system, high precision, high reliability, high productivity, and can cut 4-8 inch products.



The maximum workpiece length that can be carried is 600mm with high productivity.

Adopting exclusive spindle box system. the wire speed can reach up to 2100m/min.

Upside down swing table cutting with high cutting power.

Adopt three main rollers and three motors synchronous drive system, high synchronization and long life of main rollers.

Much stable, the whole-casted frame makes running stably.

HMI is easy to operate.

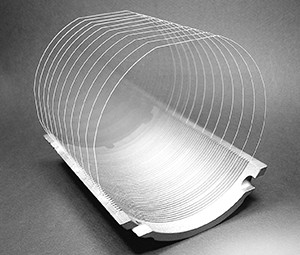

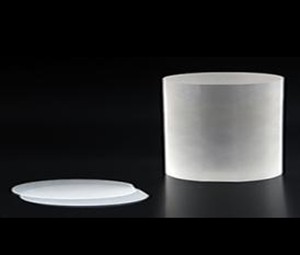

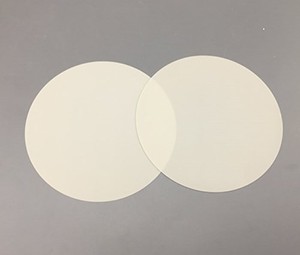

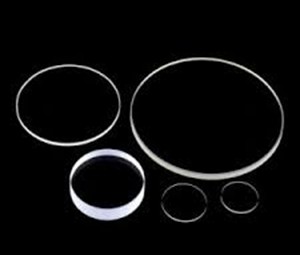

3.Cutting sample

DCX-1000-3.png  DCX-1000-4.png

DCX-1000-1.png  DCX-1000-2.png


4. Parameter

2Maximum work sizeφ205x300mmφ205x600mm
3Workbench quantity11
4Roller out diameter *Workable widthφ200mm*610mm*3 rollersφ200mm*610mm*3 rollers
5Wire diameterφ0.10mm-φ0.25mmφ0.10mm-φ0.25mm
6Wire spool storage40km(φ0.25mm)40km(φ0.25mm)
7Maximum running speed2400m/min2400m/min
8Travel of table300mm300mm
9Swing angle±10°±10°
10Cutting methodVertically downward movementVertically downward movement
11Cutting feed speed0.1~99.9mm/min0.1~99.9mm/min
12Tension range5-50N5-50N
13Tension system accuracy(during cutting)±0.5N±0.5N
14Cutting fluidWater-based cutting fluidWater-based cutting fluid
15Fluid storage420L420L
16Fluid flow rate12000L/H12000L/H
17Power supplyThree-phase 380V 50HzThree-phase 380V 50Hz
19Air supply≥0.4MPa≥0.4MPa
Size L*W*H4000x1600x3200mm4300x1650x3300mm
