CR600 Tile-shaped Multi-wire Saw
Applicable Material:sapphire, semiconductor materials, optical glass, quartz crystals, special ceramics, artificial gemstone, electrode material, rare metals and alloys, and other hard and valuable materials.

Max Processing Size: 70*600*120mm×2(Double Worktable) 130*600*120mm×2(Double Worktable)

Cut Shape: Tile/Straight shape

Max Wire Speed: 1200m/min


Product Introduction

This series is mainly used for cutting magnetic material with a circular arc shape(R shape). It allows customers to achieve high production and high economy for R shape slices.


2 workbenches make high production&efficiency.

Fewer guide wheels, the quantity reduced to 8 to reduce wire disconnection.

R shape compensating system.

More smart, wire winding and release tracking system.

Wire break memory system.

Much stable, the whole-casted frame makes running stably.

Easy operation, the opening workspace makes operation easier.

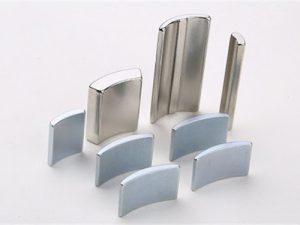

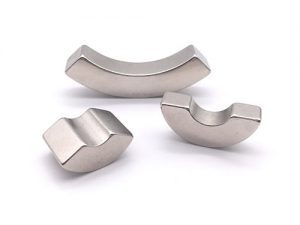

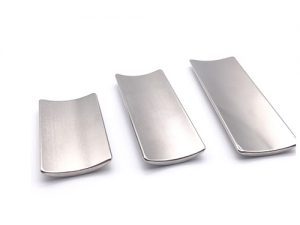

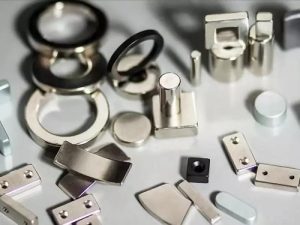

Cutting sample

瓦片2-300x225.jpg  瓦片1-300x225.jpg

钕铁硼1-300x225.jpeg  磁材瓦片-300x225.jpg


AbilityMaximum work size L*W*H70mm*600mm*120mm×2130mm*600mm*120mm×2
R shape height≥3mm
RollerOut diameter *Workable widthφ145mm±10*610mm*4
Spindle Space235mm295mm
ComponentResin(PE or PU)
Diamond WireWire diameterφ0.12mm-φ0.20mm
Running speed1200m/min
WorkbenchTravel of workbench lifting180mm
Travel of workbench translation30mm
Lift speed0.1-99.9mm/min
Fast feed speed150mm/min
Number of workbench2
Cutting fluidFluidWater--based cutting fluid or cutting Oil
Flow rate200L/min
PowerPowerThree-phase 380V 50Hz
Rated power37kw
Size & WeightSizeL*W*H3300mm*2100mm*2800mm
Installation site7000kg  Affordable
