CR400 Tile-shaped Diamond Wire Saw
Applicable Material:sapphire, quartz crystals, optical glass, special ceramics, artificial gemstone, electrode material, semiconductor materials, rare metals and alloys, and other hard and valuable materials.

Max Processing Size:220*310*100mm

Cut Shape: Tile/Straight shape

Max Wire Speed: 1000m/min


Product Introduction

This series is mainly used for cutting magnetic material with a circular arc shape(R shape). It allows customers to achieve high production and high economy for R shape slices.


Fewer guide wheels, the quantity reduced to 8 to reduce wire disconnection.

R shape compensating system.

More smart, wire winding and release tracking system.

Wire break memory system.

Much stable, the whole-casted frame makes running stably.

Easy operation, the opening workspace makes operation easier.

Cutting sample

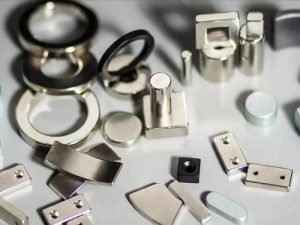

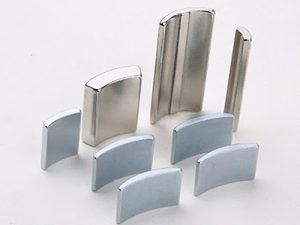

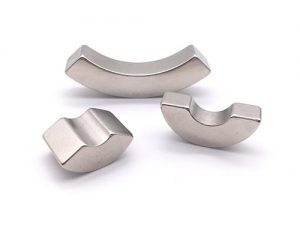

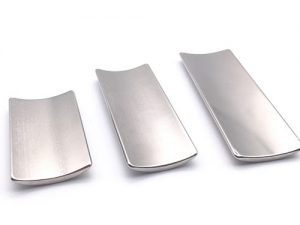

瓦片2-300x225.jpg  瓦片1-300x225.jpg

钕铁硼1-1-300x225.jpeg  磁材瓦片-300x225.jpg


AbilityMaximum  work size L*W*H220mm*310mm*100mm
RollerOut diameter *Workable widthφ145mm±10*320mm
Spindle Space395mm
ComponentResin(PE or PU)
Diamond wireWire diameterφ0.1mm-φ0.18mm
Running speed1000m/min
WorkbenchTravel of tableMax120mm
Horizontal stroke30mm
Fast feed speed150mm/min
Number of workbench1
Cutting fluidFluidCutting oil
Flow rate250L/min
Motor PowerSpindle7.5kw(servo motor)
Sending wire4.4kw*2(servo motor)
Workbench lifting400w(servo motor)
Workbench translatory400w(servo motor)
Wire tension3kw*2(servo motor)
Water pump2.2kw
Wire winding & release200w*2(servo motor)
Power&Air supplyPowerThree-phase 380V 50Hz
Full-load power30kva
Air supply0.35 Mpa-600L/min
Size & WeightSize L*W*H3000mm*1490mm*2360mm
