CF400 Diamond Multi-wire Cutting Machine
Applicable Material:sapphire, quartz crystals, optical glass, special ceramics, artificial gemstone, electrode material, semiconductor materials, rare metals and alloys, and other hard and valuable materials.

Max Processing Size:220*310*135mm

Cut Shape: Straight shape

Max Wire Speed: 900m/min

Description

Product Introduction


This series is mainly used for precision cutting of magnetic material, such as NdFeB magnet, samarium cobalt magnet, ferrite, alloys, silicon carbide, etc.


Features


Fewer guide wheels, the quantity reduced to 8 to reduce wire disconnection.

Underside workbench, the workbench is upward movement.

More smart, wire winding and release tracking system.

Wire break memory system.

Much stable, the whole-casted frame makes running stably.

Easy operation, the opening workspace makes operation easier.

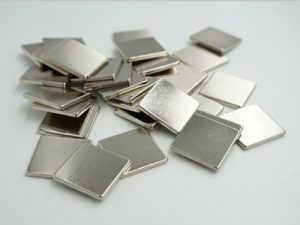

Cutting sample

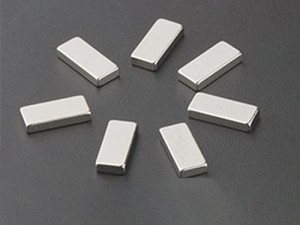

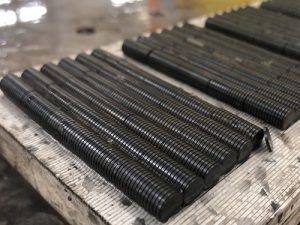

铁氧体-300x225.jpg  钕铁硼11-300x225.png

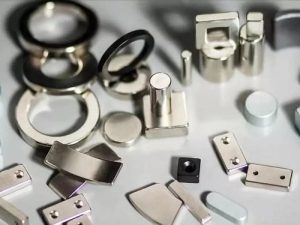

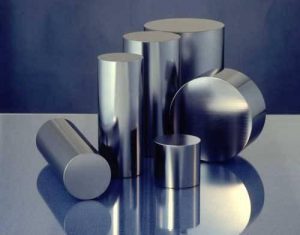

钕铁硼1-300x225.jpeg  单晶硅-2-300x235.jpg


Parameter


ItemDetailParameter
1ModelModelCF400
2AbilityMaximum  work size L*W*H220mm*310mm*135mm
3Wire Guide RollerWorkable diameter *Workable widthφ145mm±10*320mm
4Spindle Space395mm
5ComponentResin(PE or PU)
6Diamond WireWire Diameterφ0.1mm-φ0.20mm
7Storage20km
8Running speedMax900m/min
9WorkbenchTravel of tableMax150mm
10Lift speed0.1-99.9mm/min
11Fast feed speed150mm/min
12Number of workbench1
13Cutting fluidFluidCutting oil
14Storage800L
15Flow rate250L/min
16Motor PowerSpindle7.5kw(servo motor)
17Sending wire4.4kw*2(servo motor)
18Workbench lifting400w(servo motor)
19Wire tension2kw*2(servo motor)
20Water pump2.2kw
21Wire winding & release200w*2
22Power&Air supplyPowerThree-phase 380V 50Hz
23Full-load power30kva
24Air supply0.35 Mpa-600L/min
25Size & WeightSize L*W*H3000mm*1490mm*2360mm
26Weight4000Kg
