LC100 Laser Cutting Machine
Applicable Material:Magnetic Materials, Ceramics
Max Processing Size(L×W×H):100mm×100mm×4mm
Cut Shape: No-standard shape

Description

Product Introduction

LC100 Laser Cutting Machine is a high precision machine developed for the precision cutting of irregular shape Magnet, Ceramic and Alumina. Changing the traditional cutting method in the magnetic material industry, the non-standard shape products can be directly formed in one time. Save a lot of labor, at thhe same time save follow-up processes, with the advantages of high capacity, high accuracy and high efficiency.

Features

High degree of automation. Automatic loading and unloading design can reduce the labor intensity of the operator.

Using advanced software control system for easy operation, low failure rate and stable performance.

High precision servo motor design for high cutting efficiency and fast speed.

Equipped with automatic dust removal system, the cutting environment is sealed to ensure the cutting environment to meet the environmental requirements.

Wireless handhold makes it easy to change, debug and operate. The shortcut can be set according to different demands.

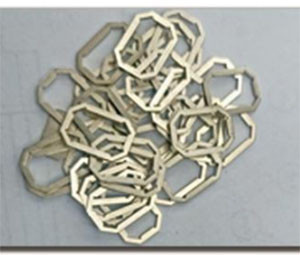

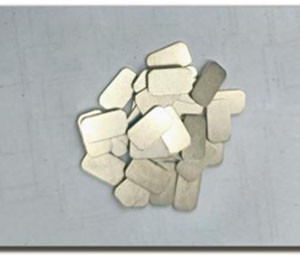

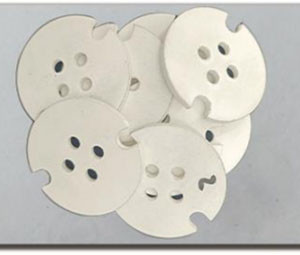

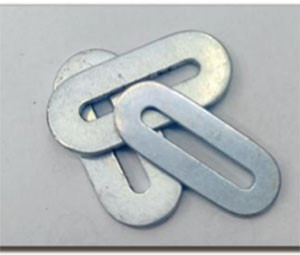

Cutting Sample

lc100-2.jpg lc100-1.jpg

lc100-4.jpg lc100-3.jpg

Parameter

NO.DetailParameter
1ModelLC100
2Maximum work size L*W*H100mm×100mm×4mm
3Cutting accuracy±0.01mm
5Number of workbench1
6Control systemFamous Spanish Brand
7Cooling mediumPure water/deplasma water
8Power supply220V
9Rated power7.6kw
10Air supplyN² or O²
11Size L*W*H2035mm*1350mm*1850mm
12Weight1500Kg
